Vertical Toroidal Ferrite Core Choke Coil Filter Inductors

 Key Specifications/Special Features:1. High efficiency2. High power3. High current4. Low power loss5. Low temperature rise6. High temperature grades are available7. RoHS Directive-compliant8. UL insulation systems are available9. Customized designs are accepted10. OEM orders are welcomeReasons of our top-quality components

Featured Products


Key Specifications/Special Features:

1. High efficiency
2. High power
3. High current
4. Low power loss
5. Low temperature rise
6. High temperature grades are available
7. RoHS Directive-compliant
8. UL insulation systems are available
9. Customized designs are accepted
10. OEM orders are welcome


Reasons of our top-quality components help your business succeed:
1. 14 years of experience customizing and power transformers and inductors
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products
4. 5000m2 factory with 21 production lines and 200 employees
5. 10 million units annual capacity
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor


Electrical Specifications:

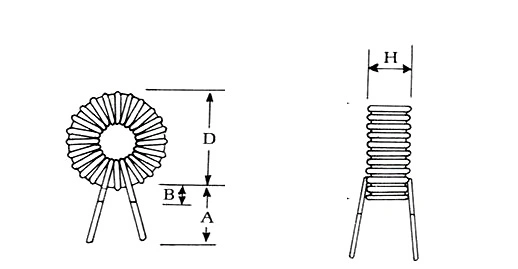

ModelD (Max)H (Max)A (Max)B (Max)Rated CurrentInductance
20268.0mm4.5mm25.0mm1.5mm0.1-0.5A5uH-27uH
302612.0mm7.0mm25.0mm1.5mm0.5-2.0A10uH-14uH
502618.0mm10.0mm25.0mm1.5mm1.0-3.0A20uH-68uH
682624.0mm10.5mm25.0mm1.5mm1.0-5.0A25uH-500uH
802626.5mm11.5mm25.0mm2.0mm3.0-5.0A50uH-960uH
1062636.0mm19.5mm25.0mm2.5mm2.0-10.0A30uH-850uH
1302642.0mm21.5mm25.0mm2.5mm2.0-10.0A30uH-950uH
Inductance tolerance:+5%;+10%;+20%
** We can design and manufacture customized part with specific requirement



Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
Vertical Toroidal Ferrite Core Choke Coil Filter Inductor
