12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Holding Relay 250VAC

Packaging & Delivery:Box,cartonPort:Ningbo/ShanghaiLead Time:Quantity(Pieces)1 - 50>50Est. Time(days)7To be negotiatedOur company is specialized in latching relay.We can produce more than 20 series, we own five high quality production lines, and have the capacity to produce 15 million pieces/year. The latching r

Featured Products

Packaging & Delivery:
Box,carton
Port:
Ningbo/Shanghai
Lead Time:
Quantity(Pieces)1 - 50>50
Est. Time(days)7To be negotiated

Our company is specialized in latching relay.We can produce more than 20 series, we own five high quality production lines, and have the capacity to produce 15 million pieces/year. The latching relay has a capacity of 12 million pieces/year, with a guaranteed high delivery security.
We have gained a reputation for a reliable, quality guaranty system and are deeply praised by Euro customers and friends alike.

Contact Parameters

Dimensions(mm)116×52×28
Contact Form3A/3B
Contact MaterialSilver Alloy
Max Switching Current(Anti-load)80A/100A/120A
Max Switching Voltage250VAC
Max Switching Power20000VA
Wight290g

 Coil Parameters(at 20 ºC )

Rated Coil Voltage9VDC12VDC24VDC48VDC
Coil ResistanceSingle Coil(±10%Ω)3257230920
Double Coil±10%Ω)1629115460
Power ConsumptionSingle Coil 2.5W;Double Coil 5W
Pick-up Voltage≤75%(Rated Coil Voltage)
Drop-out Voltage≤75%(Rated Coil Voltage)
Max. Applicable Voltage≤120%(Rated Coil Voltage)
Pick-up Time (At Rated Voltage)≤50ms
Drop-out Time (At Rated Voltage)≤50ms
Bounce Time≤2ms

Characteristics

 Ambient Temp-40~+70ºC
Ambient Humidity≤75%(Annually average)
Anti-vibration10~55Hz,0.5mm (Double Amplitude)
Anti-shock98m/S2,11ms
R.H.45%~85%
Contact Resistance≤2.0mΩ (1A/6VDC)
CertificationUC3/RoHS/VDE
Insulation Resistance1000MΩ  (500VDC)
   Dielectric StrengthBetween Contacts2000 VAC 50/60Hz (1 Minute)
Between Contact & Coil4000 VAC 50/60Hz (1 Minute)
Between Contacts&Contact6000 VAC 50/60Hz (1 Minute)
   LifeElectrical Life1*104OPS
Mechanical Life5*105OPS

Detailed Images

Perfect comes from details of quality consistent;
Advanced production technology and perfect testing means;
All products are superior in quality guarantee.
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC

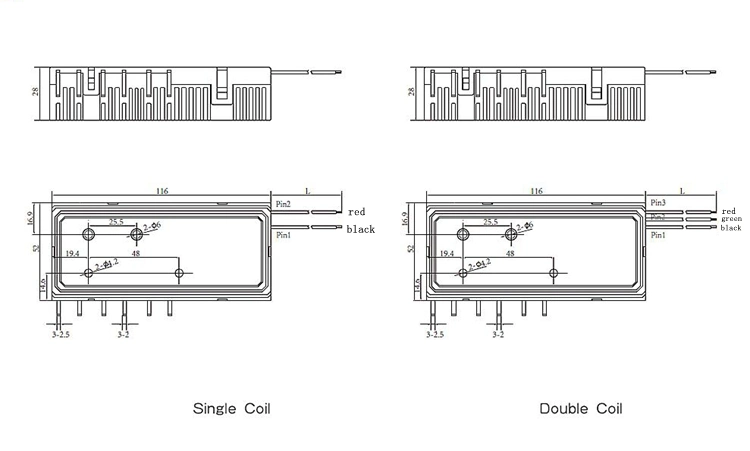

Dimmensions(In mm)
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VACWiring Diagram
  12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC

Workshop
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VACPacking
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VACCertificate
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC
12V Magnetic Latching Relay 100A 12VDC 24VDC Relay Latching Relay 250VAC
