|Quantity(Pieces)||1 - 50||>50|
|Est. Time(days)||7||To be negotiated|
Our company is specialized in latching relay.We can produce more than 20 series, we own five high quality production lines, and have the capacity to produce 15 million pieces/year. The latching relay has a capacity of 12 million pieces/year, with a guaranteed high delivery security.
We have gained a reputation for a reliable, quality guaranty system and are deeply praised by Euro customers and friends alike.
|Contact Material||Silver Alloy|
|Max Switching Current(Anti-load)||120A|
|Max Switching Voltage||28VDC/250VAC|
|Max Switching Power||3000W/30000VA|

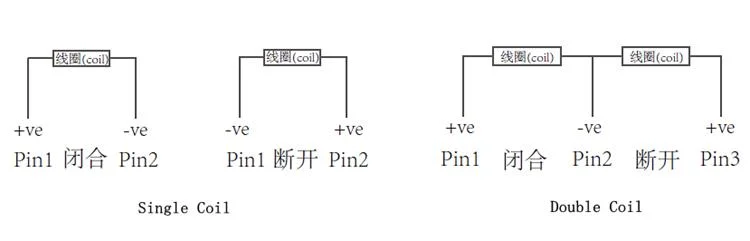

Coil Parameters(at 20 ºC )
|Rated Coil Voltage||9VDC||12VDC||24VDC||48VDC|
|Coil Resistance||Single Coil(±10%Ω)||40.5||72||288||1152|
|Power Consumption||Single Coil 2W;Double Coil 4W|
|Pick-up Voltage||≤72%(Rated Coil Voltage)|
|Drop-out Voltage||≤72%(Rated Coil Voltage)|
|Max. Applicable Voltage||≤120%(Rated Coil Voltage)|
|Pick-up Time (At Rated Voltage)||≤50ms|
|Drop-out Time (At Rated Voltage)||≤50ms|
|Ambient Humidity||≤75%(Annually average)|
|Anti-vibration||10~55Hz,0.5mm (Double Amplitude)|
|Contact Resistance||≤2.0mΩ (1A/6VDC)|
|Insulation Resistance||1000MΩ (500VDC)|
|Dielectric Strength||Between Contacts||2000 VAC 50/60Hz (1 Minute)|
|Between Contact & Coil||4000 VAC 50/60Hz (1 Minute)|

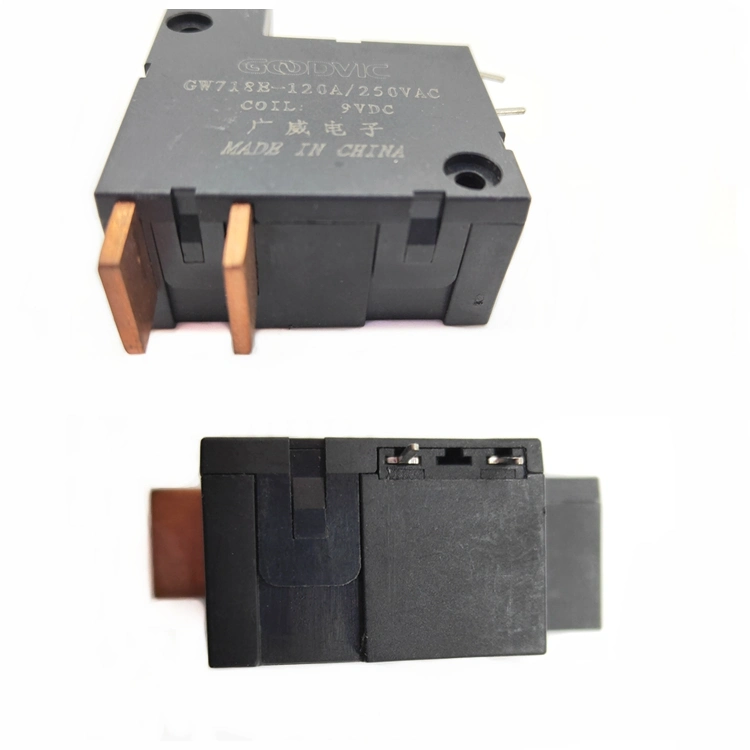

Detailed ImagesPerfect comes from details of quality consistent;
Advanced production technology and perfect testing means;
All products are superior in quality guarantee.
Q1: How about the payment terms?
A1:Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
Q2: How about Delivery time?
A2:We can produce 100,000 pcs per month, large capacity. Normally, 15 days.
Q3: Can I get a sample?
A3:For sure, we are willing to supply samples free for quality checking.
Q4 : What's the price?
A4:Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
