Use
Shunt release is used to remotely control the opening of circuit breakers;
The release is an instantaneous working system.
Characteristics
Wiring diagram
Shunt release is used to remotely control the opening of circuit breakers;
The release is an instantaneous working system.
Characteristics
| Electrical accessories | Shunt release | |||
| Voltage range | (70%~110%)×Ue | |||
| Rated control power supply voltage | Power supply | AC 50Hz | 220V | 380V |
| Power loss | 150VA | 150VA | ||
| DC | 110V | 220V | ||
| Power loss | 150W | 150W | ||

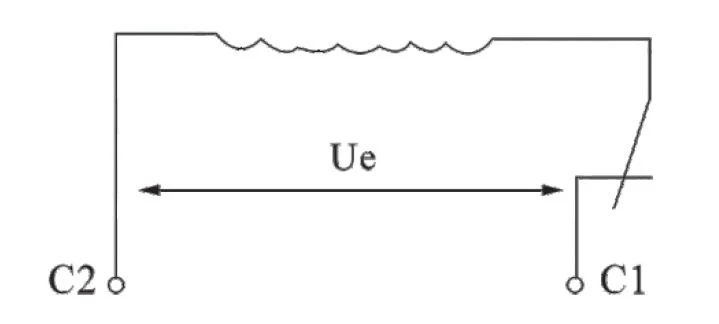

Wiring diagram
Ui - Power supply
Ue - Rated voltage
C1, C2 - Terminal number
Ue - Rated voltage
C1, C2 - Terminal number
