60mm 300A Outdoor Waterproof IP65 Current transformer for control center Busbar split core CT

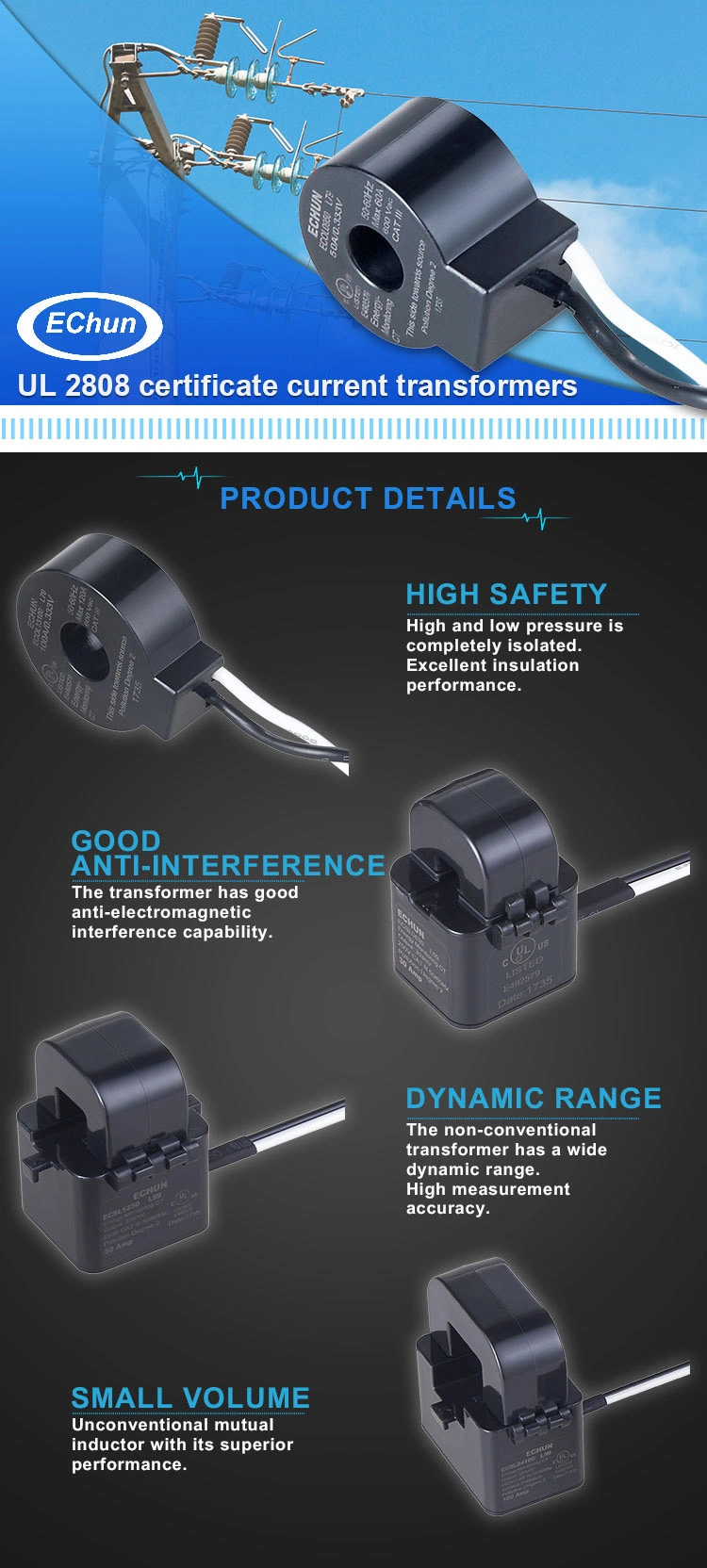

The ECS60-S series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation
Customized current ratio available.
Rated Primary Current(Amp.) 50/60Hz
D.C. Resistance at 20 ºC
Phase Error at Rated Current Range
Operating Temperature Range
Storage Temperature Range
|Thermal Short-circuit Current, Ith
60 x In
|Dynamic Current, Idyn:
2.5 x Ith
|Maximum Operation Voltage
Dielectric Withstanding Voltage(Hi-pot)
Impluse Withstand Voltage
Monitoring and protection
Energy and sub-metering products
Instruments and sensors
Excellent linearity over the whole range.
Fully RoHS compliant.
Outdoor or Indoor use.
