1. 16x4 Characters
2. Parallel interface, 5V power supply
3. STN-Gray with YG backlight
2. Parallel interface, 5V power supply
3. STN-Gray with YG backlight
| Item | Description |
| Product Name | 16x4 Character LCD Module |
| Model No. | LMB164A |
| Dot Format | 16 x 4 |

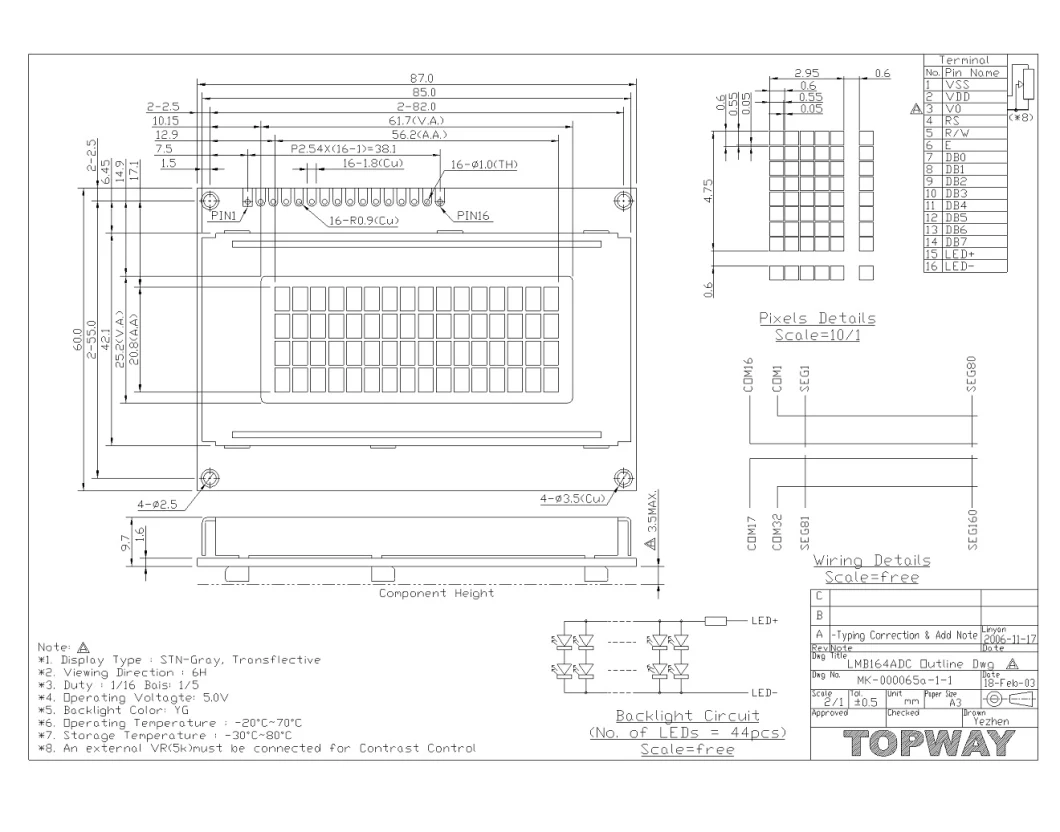

| Outline Dimension(mm) | 87.0 x 60.0 x 13.2MAX |
| Assem. Size(mm) | 82.0 x 55.0 |
| Viewing Area(mm) | 61.7 x 25.2 |
| Character Size( mm) | 2.95 x 4.75 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN Gray |
| Backlight | Y/G LED backlight |
| Driver IC | ST7066U |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
